Airmax® PS40 Aeration System – Aerates Ponds up to 4 Acres
This aeration system is fantastic for ponds up to four acres.
• Four (4) ProAir™4 Self-Weighted Diffuser (5 year warranty)
• Airmax® Composite Cabinet
• RP50 1/2HP SilentAir™ RP Series Rocking Piston Compressor
• Airline Quick Disconnects for easy system removal and storage
• Air Filter maximizes the life of compressor components
• 400′ Self-Weighted 3/8″ Easy Set Airline
• 2-Year Compressor Warranty
• 6.8/4.4 Max/Amps, 115 Volts, 5.8 CFM, 21′ Max. Depth
• Monthly running cost $25.50 (24/7)
Product Number: AE40141
PS40 Four Plate System – Provides Aeration for up to 4 acres, up to 21′ Deep
Our most popular aeration system, the Pond Series™ Aeration Systems are powerful enough to aerate ponds up to 4 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. Diverse Pond Series™ systems make aeration a breeze. Our single plate PS10 system is excellent for smaller or regularly shaped ponds while the 4 plate PS40 tackles larger water bodies up to 4 acres or ponds with an irregular shape that require precision plate placement for even circulation.

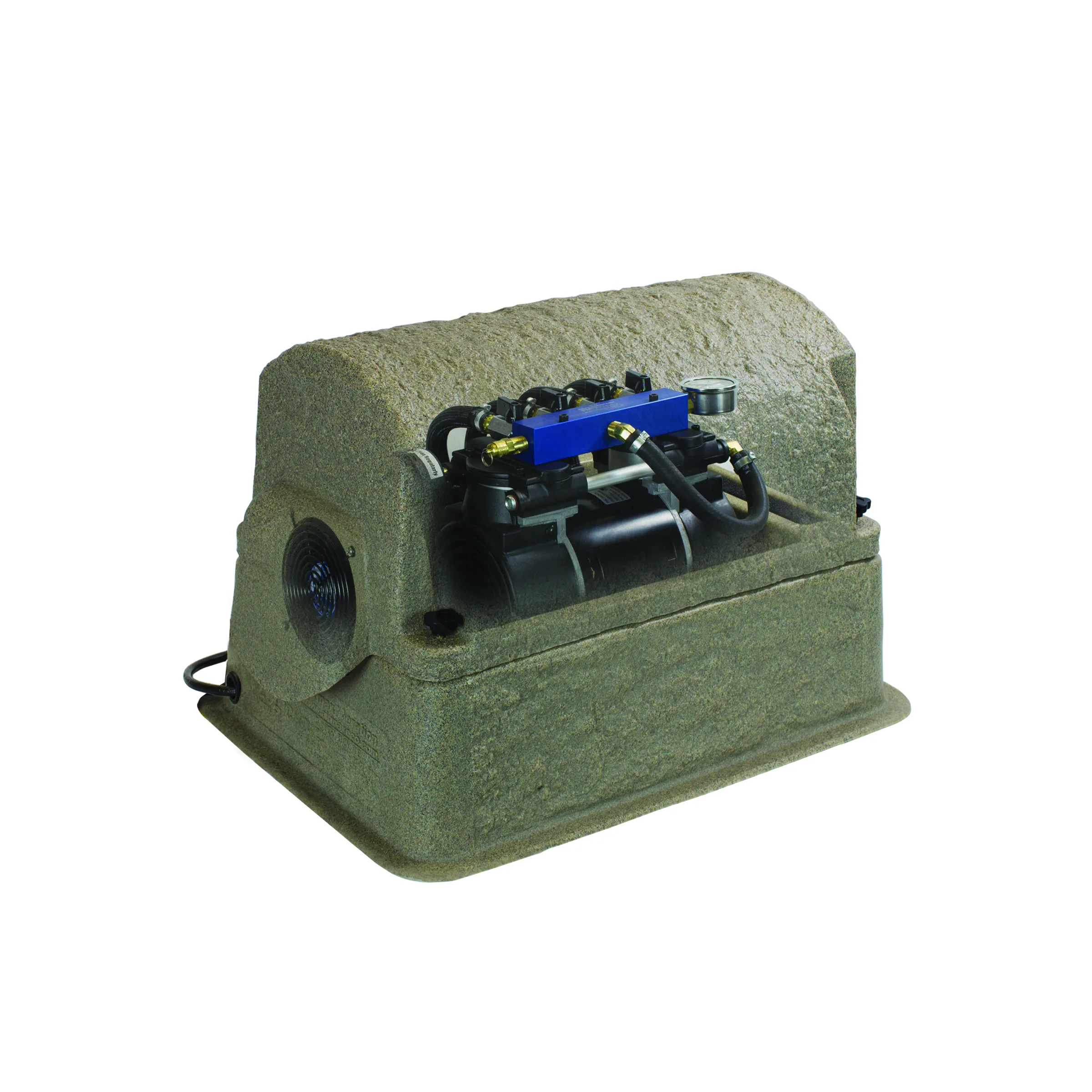

Airmax® Composite Cabinet
Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements. An integrated cooling system utilizes a ventilation fan with a rain shroud and high-density air intake pre-filter to distribute air evenly throughout the cabinet, keeping the interior components clean, cool, and dry. An elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation, while the removable top ensures quick and easy access for inspection and maintenance. Every Airmax® Composite Cabinet in our Pond Series™ comes complete with a pre-wired electrical box and a 6-foot power cord to power the enclosed cooling fan and aeration compressor. The Airmax® Composite Cabinet has a lifetime warranty on the cabinet and a 2-year warranty on electrical components.
SilentAir™ Series Aeration Compressor
The heart and soul of each Pond Series™ Aeration System, our powerful whisper-quiet SilentAir™ rocking piston compressors push oxygen through your pond while remaining energy efficient – costing as little as $7 a month in electricity running 24/7. Each SilentAir™ aeration compressor is fitted with an integrated air regulator to provide easy airflow management and is mounted on vibration-reducing rubber feet to ensure quiet operation.
ProAir™4 Weighted Diffuser
Designed for maximum oxygen uptake, our ProAir™4 Weighted Diffuser incorporates high-efficiency, low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers possess the synergy of air stones without the headaches of cracking and acid-washing. The ProAir™4 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor. The innovative sled design submerges the ProAir™4 submerged while maintaining an upright position during installation.
What will an Aeration System do for my pond?
• Provides Maximum Water Circulation and Aeration
• Keeps Water Clear and Fish Healthy
• Reduces Mucky Bottoms
• Reduces Pond Maintenance
• Reduces the Chance of Fish Kill
